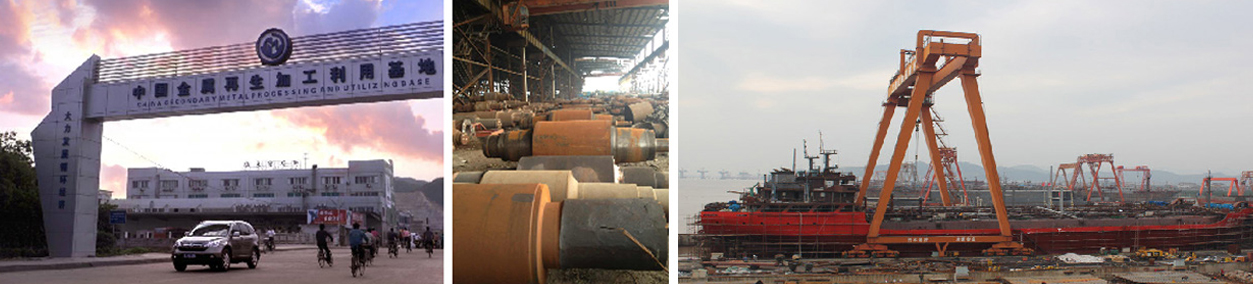

Taizhou, Zhejiang, has the country's largest scrap metal dismantling base, with abundant sources of scrap steel raw materials. In addition, Taizhou's shipbuilding industry is developed, and the corner materials for shipbuilding can also be a source of spare steel scrap raw materials.

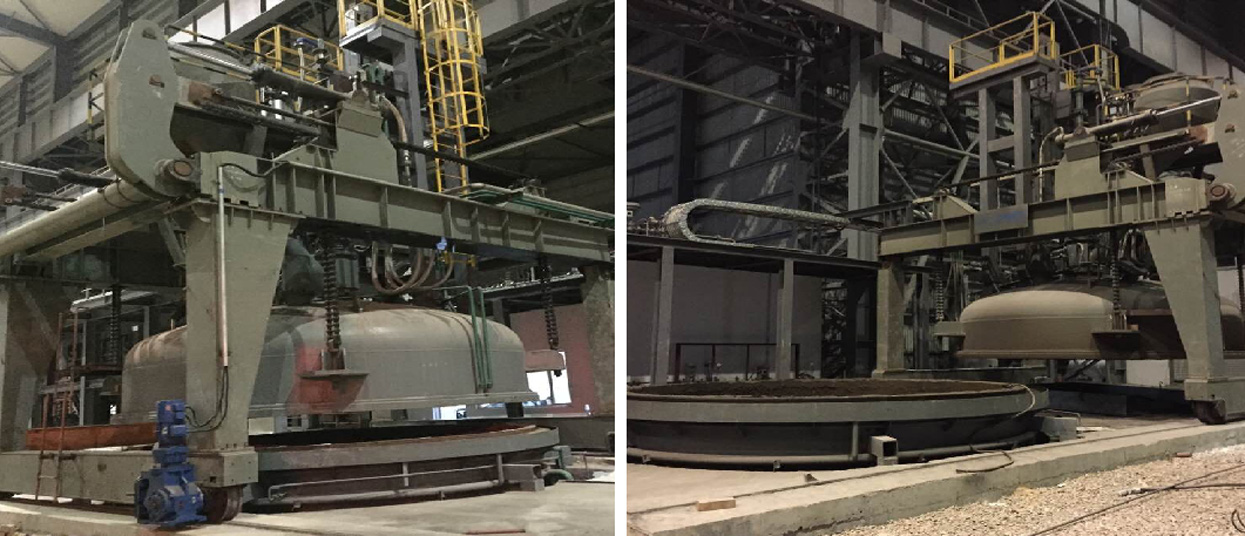

Liyuan Heavy Industries' 60-ton electric arc furnace (EBT) adopts the German Siemens control system and adopts slag-free tapping in the process.

The EBT furnace is a 60-ton ultra-high-power electric arc furnace with a maximum tapping capacity of 90 tons. The overall tapping is eccentric slag-free tapping, and the steel slag is separated.

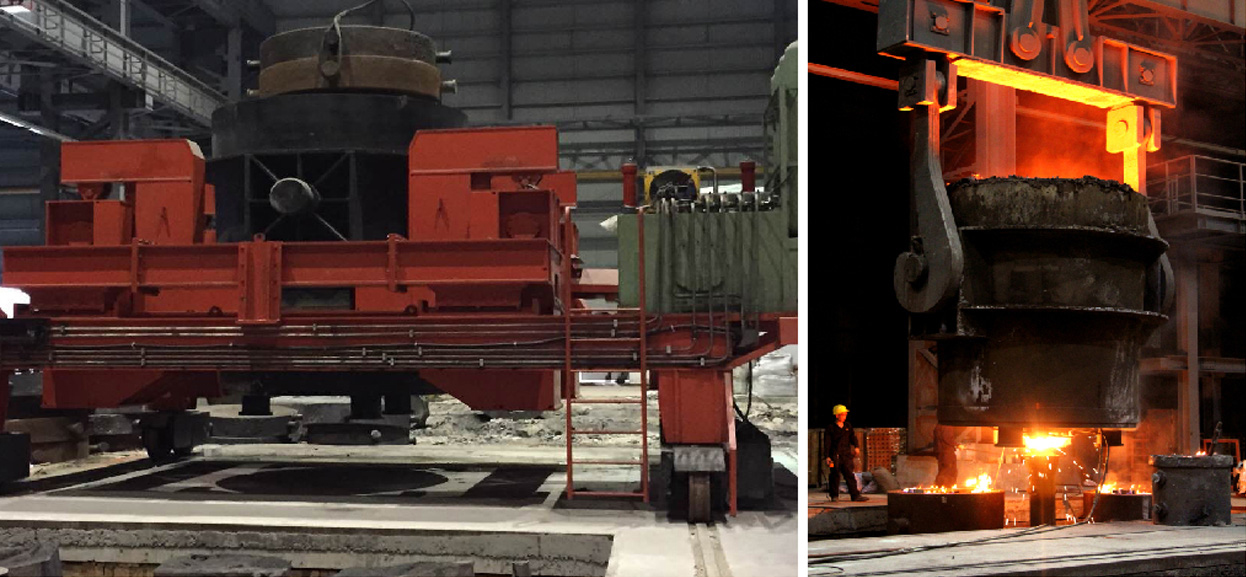

Liyuan Heavy Industry 60-ton Refining Furnace (LF)

The LF furnace is a 60-ton furnace for refining outside the furnace, which is heated by an electric arc under normal pressure, and argon is blown at the bottom of the bag.

Liyuan Heavy Industry 60-ton VD/VOD Refining Furnace

The VD/VOD is a 60-ton vacuum smelting furnace, which is kept under high vacuum (≤67pa) for a long time with bottom-blowing argon refining to effectively remove hydrogen, oxygen and nitrogen in the steel and further improve the purity of molten steel.

Liyuan Heavy Industry Ingot Pouring (IC)

The pouring is a down pouring method accompanied by argon protective pouring, which can cast 90 specifications of steel ingots ranging from 2 tons to 85 tons.

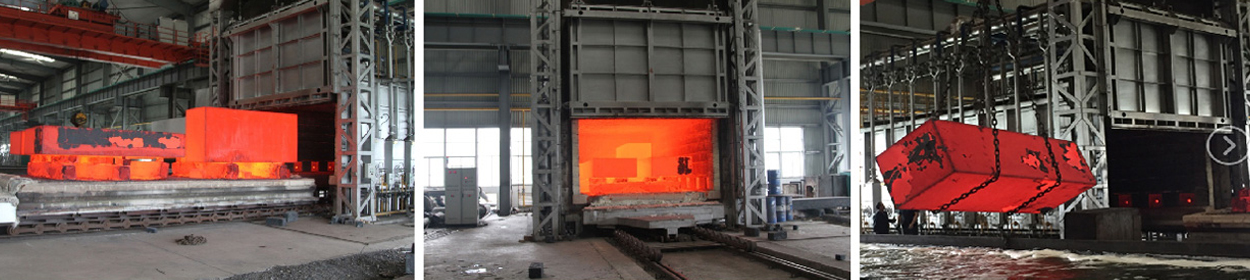

Liyuan Heavy Industry Natural Gas Heating Furnace

The German Siemens PL electrical control system is adopted, and the natural gas heating furnace with regenerative combustion burner and automatic temperature control system is adopted in the process.

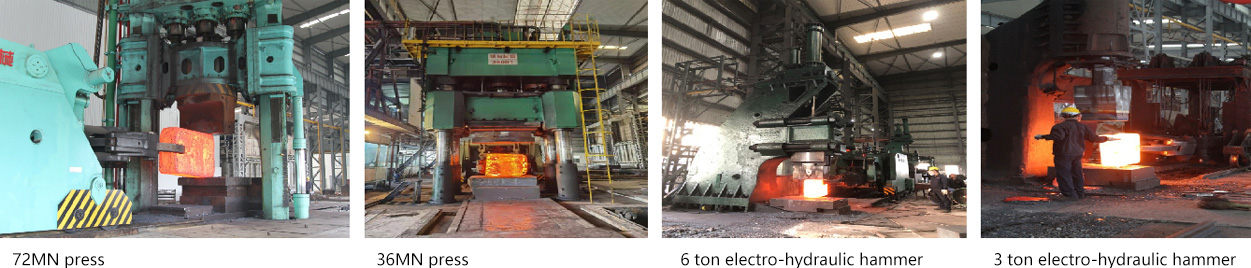

Liyuan Heavy Industry Forging

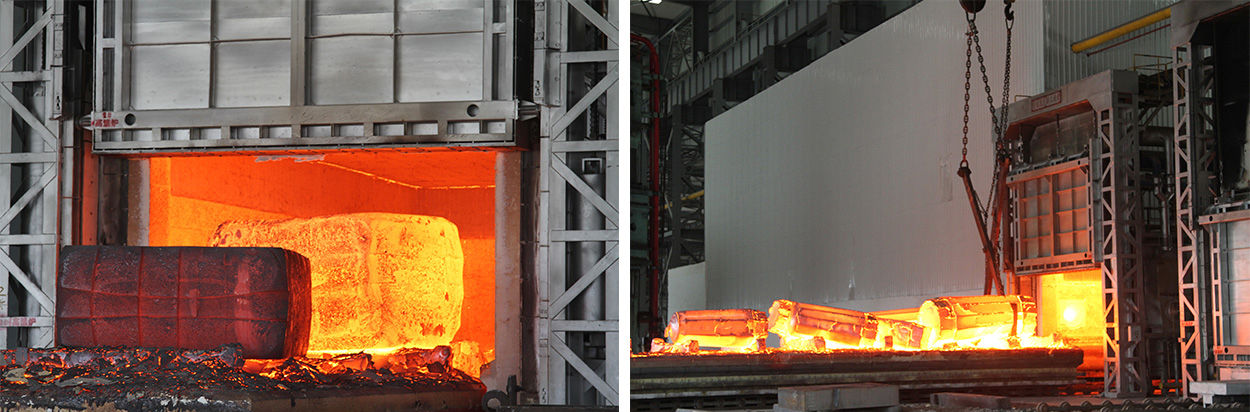

Liyuan Heavy Industry Heat Treatment

There are 4 natural gas high-precision heat treatment furnaces, 10 car-type electric heat treatment furnaces, 600 cubic meters cooling pool, four PAG medium quenching tanks, one water medium, one oil medium, and a total of six quenching water cooling equipment.

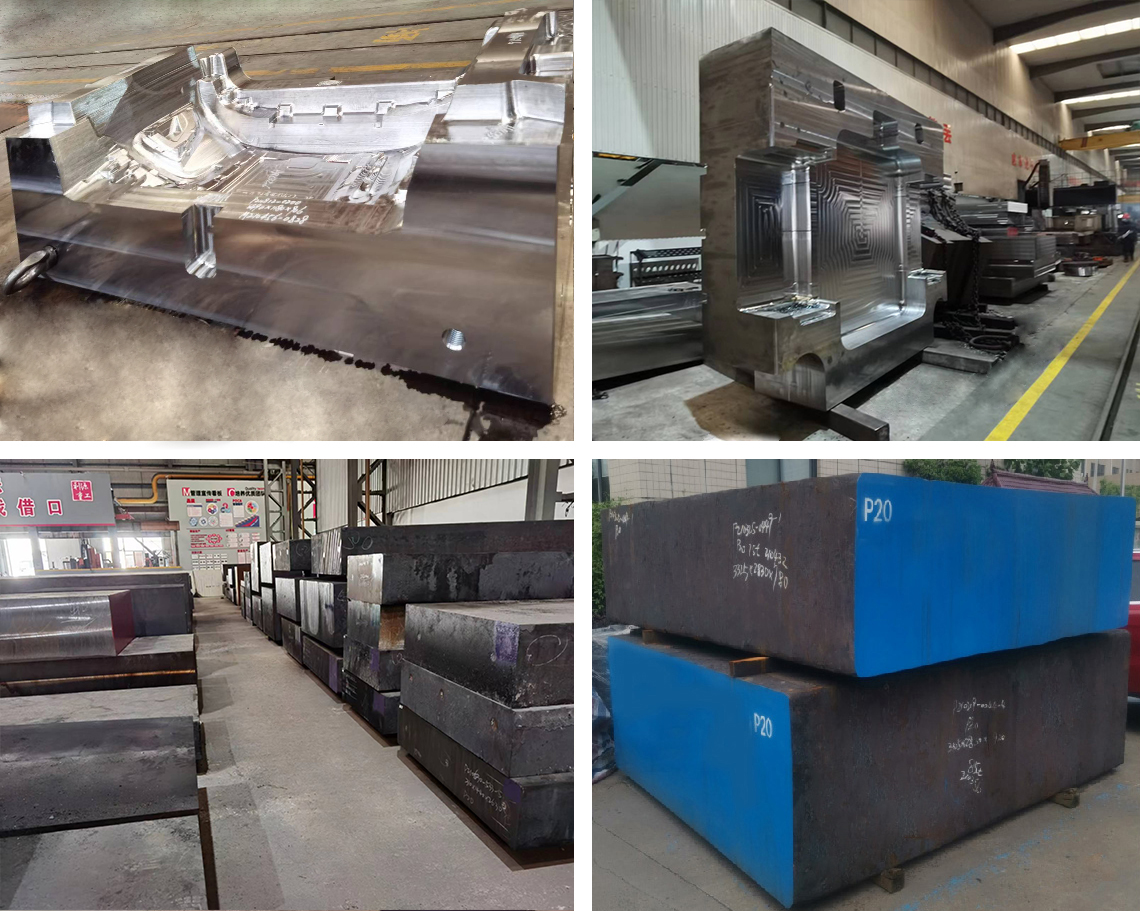

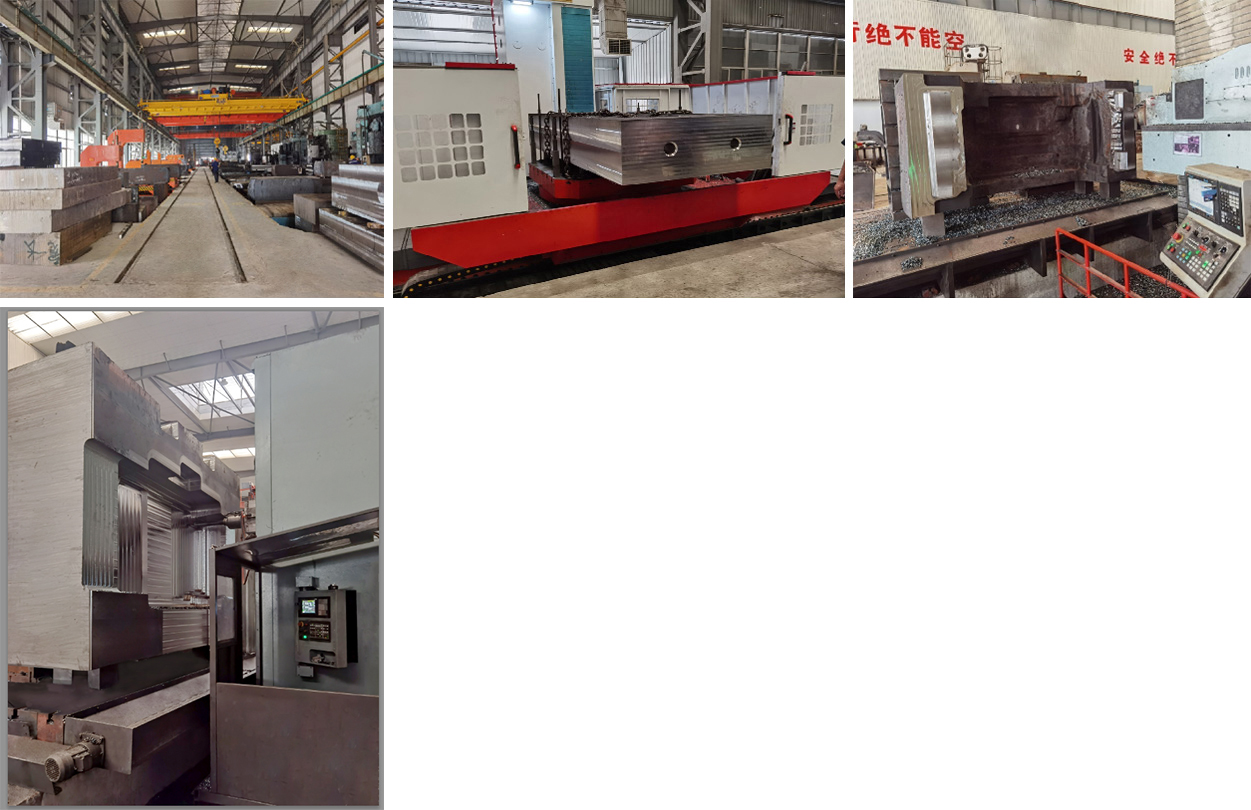

Liyuan Heavy Industry Processing Service

Liyuan Heavy Industry can provide customers with services of machining ring holes and roughing and finishing milling six sides.
